Introduction to Custom DP Cables
As display systems continue to evolve toward higher resolutions, higher refresh rates, and more complex system architectures, custom DP cables have become a critical component in industrial, medical, and professional AV environments. Unlike standard off-the-shelf cables, custom DisplayPort solutions are engineered to meet specific requirements such as long-distance transmission, enhanced durability, electromagnetic resistance, and system-level compatibility.
DisplayPort (DP), developed by VESA, is inherently designed for high-bandwidth, low-latency digital video transmission. When combined with custom cable designs—such as armored structures, locking connectors, or active optical technology—DisplayPort becomes an ideal interface for demanding professional applications.
How DisplayPort Technology Enables Professional Applications

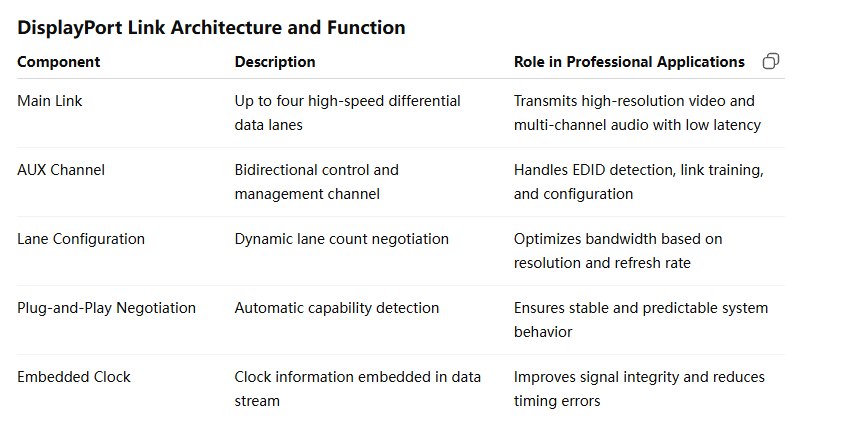

At its core, a DisplayPort cable transmits digital video and audio data using high-speed differential signaling over multiple lanes. A standard DP link consists of:
- Main Link: Up to four high-speed data lanes used for video and audio transmission
- AUX Channel: A bidirectional control channel for link training, device detection (EDID), and configuration
This architecture allows DisplayPort devices to automatically negotiate resolution, refresh rate, color depth, and lane count. For professional systems, this means stable plug-and-play operation and predictable performance—key advantages when deploying custom DisplayPort cables in complex environments.
Additionally, DisplayPort uses embedded clock transmission and advanced encoding schemes (such as 128b/132b in DP 1.4 and above), improving bandwidth efficiency and signal integrity over long distances or in electrically noisy environments.
Custom DP Cables in Industrial Environments
Why Industrial Systems Require Custom DisplayPort Cables
Industrial environments place unique demands on display connectivity:
- Continuous 24/7 operation
- High levels of electromagnetic interference (EMI)
- Long cable runs between control rooms and equipment
- Mechanical stress, vibration, and temperature variation
Custom DP cables are engineered to address these challenges through reinforced materials, improved shielding, and optional active or optical signal conversion.
How DisplayPort Works in Industrial Applications
In industrial control systems, DisplayPort typically connects:
- Industrial PCs or embedded controllers
- Human-machine interfaces (HMIs)
- High-resolution monitoring displays

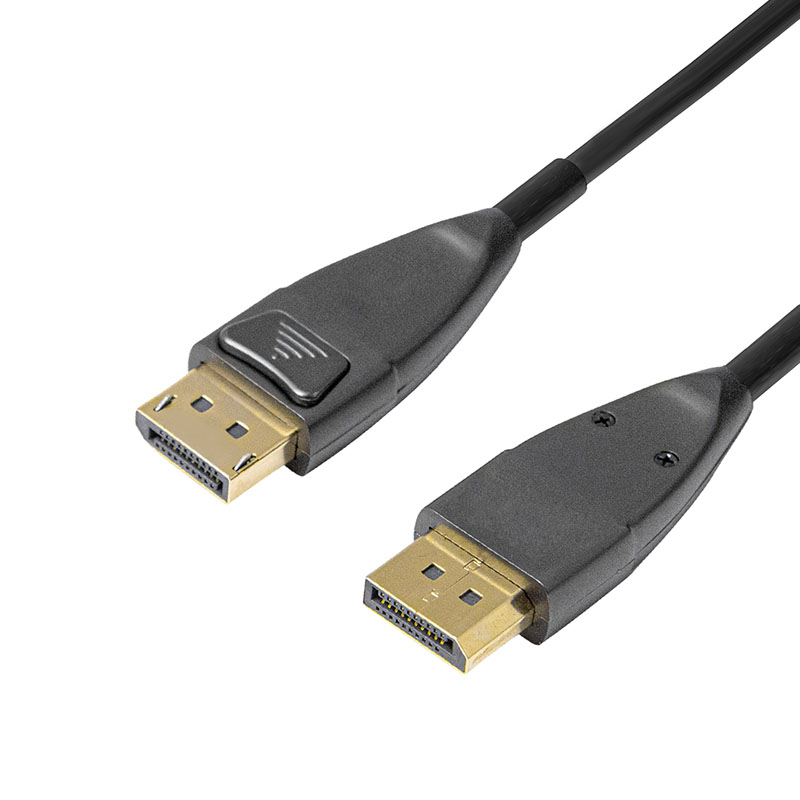

The DP AUX channel ensures reliable link training even after power cycling or system restarts, while the multi-lane main link delivers stable high-resolution video. When implemented as a custom DP optical cable (DP AOC), electrical signals are converted into optical signals, making the transmission immune to EMI and suitable for distances of 30 meters, 50 meters, or more.
This makes custom DisplayPort cables ideal for factories, automation systems, and machine vision monitoring stations.
Custom DP Cables for Medical Imaging Systems
Display Requirements in Medical Imaging
Medical imaging applications—such as radiology, endoscopy, surgical displays, and diagnostic workstations—demand:
- Ultra-high image clarity
- Accurate color reproduction
- Low latency
- High reliability and safety
Any signal degradation or instability can directly affect diagnostic accuracy.
The Role of Custom DisplayPort Cables in Medical Applications
DisplayPort supports high resolutions, high color depth, and high refresh rates required by modern medical displays. With custom DisplayPort cables, system designers can further optimize performance by selecting:
- Medical-grade materials
- Secure or locking connectors
- Optical transmission to eliminate electrical noise
From a technical perspective, DisplayPort’s packet-based transmission and embedded clock reduce timing errors and signal jitter—both critical for consistent image quality. Optical custom DisplayPort cables also provide electrical isolation, which is beneficial in sensitive medical environments.
As a result, custom DisplayPort cables are widely used in:
- Diagnostic imaging workstations
- Surgical display systems
- Medical monitoring equipment
Custom DisplayPort Cables in Professional AV and Rental & Staging (AV/RV)
Challenges in Professional AV Systems
Professional AV and rental & staging environments require display connections that are:
- Flexible and easy to deploy
- Capable of long-distance transmission
- Resistant to interference from lighting, power, and wireless equipment
- Reliable under frequent setup and teardown
Standard consumer cables often fail to meet these requirements.
How Custom DisplayPort Cables Deliver Advantages in AV/RV Applications
In professional AV systems, DisplayPort is used to connect:
- Media servers
- Video processors
- LED walls and high-resolution monitors
With custom DisplayPort cables, AV integrators can specify cable length, connector type, and mechanical protection to suit each installation. DisplayPort’s high bandwidth enables uncompressed or lightly compressed video signals, while Multi-Stream Transport (MST) allows multiple displays to be driven from a single output—reducing cable clutter and system complexity.
When implemented as an active optical solution, custom DisplayPort cables provide stable signal transmission over long distances without signal loss, making them ideal for large venues, broadcast studios, and live events.
Why Custom DisplayPort Cables Are Preferred Over Standard Solutions

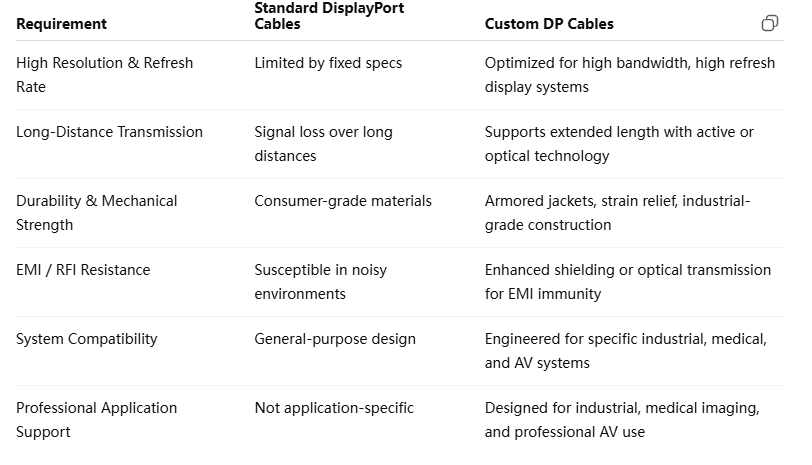

Compared to standard cables, custom DisplayPort cables offer:
- Tailored length and connector configurations
- Enhanced mechanical durability
- Improved EMI resistance
- Support for active and optical transmission
- Better integration with industrial, medical, and AV systems
These advantages allow system designers and OEMs to optimize performance, reliability, and installation efficiency.
Conclusion: The Value of Custom DisplayPort Cables
As display applications continue to expand into industrial automation, medical imaging, and professional AV environments, custom DisplayPort cables provide the flexibility and performance required by these demanding systems. By leveraging DisplayPort’s high-bandwidth architecture, robust link management, and compatibility with optical transmission, custom solutions deliver stable, high-quality video where standard cables fall short.
For OEMs, system integrators, and professional users, investing in custom DisplayPort cables is not only a matter of connectivity—it is a strategic choice to ensure long-term reliability, scalability, and visual performance across critical applications.
