HDMI Cable Solutions & Selection Guide
Choose the HDMI cable construction and connector format that fit your source, display and installation route. Compare copper, active optical, armored, detachable and screw-lock options, then review the recommended models for your project.
Join thousands of companies using Elike
Data Transfer Up to 48Gbps
Support 4K60HZ & 8K60HZ
High Dynamic Range
Super Lightweight
Compare HDMI Cable Solutions for Your Project
Start with the exact source and display models, required resolution and refresh rate, and the complete cable route. Then compare the constructions below. A cable recommendation must match the selected model, length and connected equipment.
| Project requirement | Solution to consider | Recommended starting model | Check before ordering |
|---|---|---|---|
| Short connections between nearby AV devices | Passive copper HDMI | SHOM-2100 — molded copper cable | Required length, video format, connector clearance and routing flexibility. |

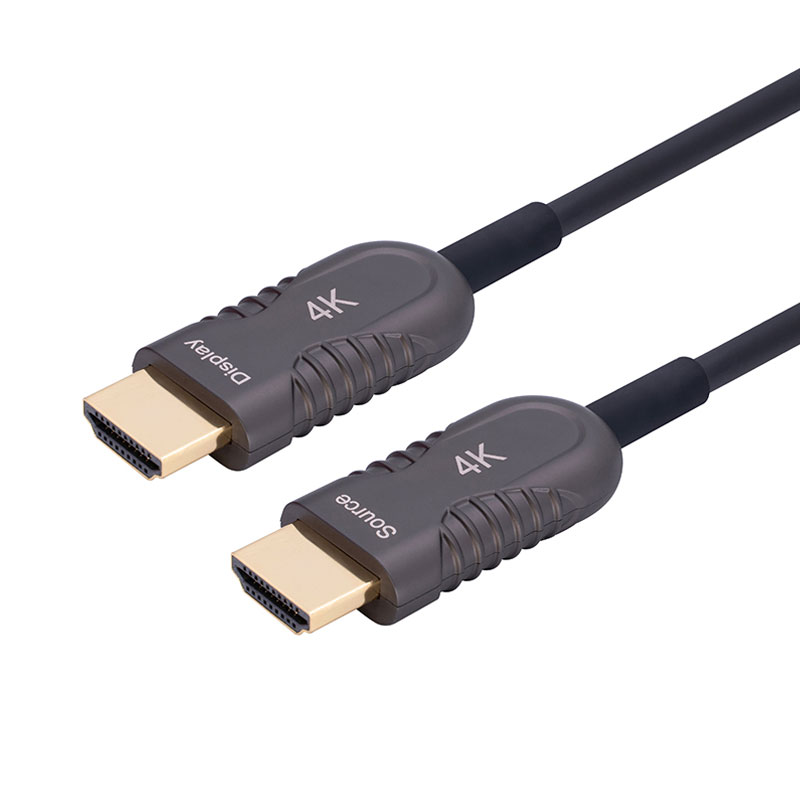

| Extended 4K connections for displays, projectors or signage | 4K active optical HDMI | SHDC-8700 — Type-A to Type-A AOC | Source/display direction, requested route length, video format and HDCP requirements. |
| Extended connections for compatible 8K or 4K high-refresh-rate equipment | 48Gbps active optical HDMI | SHDC-9860 — 8K Type-A AOC | Confirm the supported resolution, refresh rate and color format at the exact ordered length. |
| Cable routes exposed to pulling, crushing or frequent handling | Armored active optical HDMI | SAHC-9860 — armored 8K AOC | Mechanical limits, bend radius, installation method and any required environmental rating. |
| Routing through restricted openings or conduits | Detachable connector solution | SHDC-9900 — detachable 8K AOC | Connector and adapter dimensions, conduit diameter, pulling procedure and final equipment ports. |
| Equipment with a compatible screw-lock mounting interface | Screw-lock active optical HDMI | SSHC-8700 — 4K AOC with screw | Mounting-hole position, screw fit, connector clearance and video requirements. |
| Projects requiring an all-fiber transmission architecture | Pure fiber HDMI | SHPC-8700 — 4K pure fiber solution | System isolation requirements, power arrangement and required control/audio functions. |
| Limited routing space with a need for mechanical protection | Super-slim armored HDMI | SSAC-8730 — slim armored 4K AOC | Cable diameter, connector dimensions, bend radius and supported length. |
How to Choose Between Copper and Active Optical HDMI
Consider passive copper first for short, straightforward connections between nearby devices. For extended routes, evaluate an active optical model against the required video format and distance. Choose armor when the cable needs additional mechanical protection, or a detachable solution when connector size makes routing difficult.
The models above are starting points for project discussion. Follow each link for product specifications, or browse the complete HDMI cable catalog. Final video performance, audio-return features and installation limits depend on the selected configuration.
Send These Details for a Model Recommendation
- Source and display manufacturer/model, plus any switcher, extender or AV receiver in the path.
- Resolution, refresh rate, color/bit-depth requirements and required HDR, HDCP or audio-return features.
- Total cable-route length, connector types, conduit dimensions and space behind equipment.
- Installation environment, bending or movement, mechanical loads and any required environmental rating.
- Quantity, custom length, labeling and OEM/ODM requirements.
Use the inquiry form below to share your requirements. Elike can help identify a suitable model and confirm the configuration before quoting.
