USB-C Cable Selection Guide: Data, Video & Power
Choose USB-C cables by the function your project needs: data transfer, charging, display output or a full-featured connection. Compare Elike models, compatibility requirements and installed cable length before requesting a quote.
Join thousands of companies using Elike
Compare USB-C Cables by Function
Select the function first, then the connector and length
A USB-C connector can be used for different cable functions. Specify whether your project needs data, charging, display output, or all three before comparing models. The table below separates these requirements and links to the relevant product details.
| Project need | Cable solution | Recommended model | Check before ordering |
|---|---|---|---|
| Charging with basic data sync | USB-C charging cable; up to 100W and 480Mbps | STQG-4200 | Confirm the charger and device support the requested PD power. This is not a high-speed USB or display recommendation. |
| Long-distance camera, storage or peripheral data | USB-C data AOC; up to 10Gbps and 30m | SCDC-3100 | No DP Alt Mode video output. Confirm the peripheral power demand against the listed 5V/800mA limit. |
| Tight clearance or right-angle USB-C data routing | Right-angle USB-C AOC; up to 10Gbps and 15m | SCRA-3120 | Check connector orientation, available clearance, USB fallback and device power. Do not infer video support from the connector shape. |
| A USB-C source connected to a USB-C display | USB-C video AOC; up to 30m; listed 4K60 support | SCVC-3100 | Confirm video support on both endpoints and the required display mode. Verify charging availability separately at your chosen length. |
| Data, video and power in one connection | Full-function USB-C AOC; up to 10Gbps, 60W and 10m | SCFC-3120 | Requires compatible DP Alt Mode source/display for video. Compare full-featured USB-C solutions. |

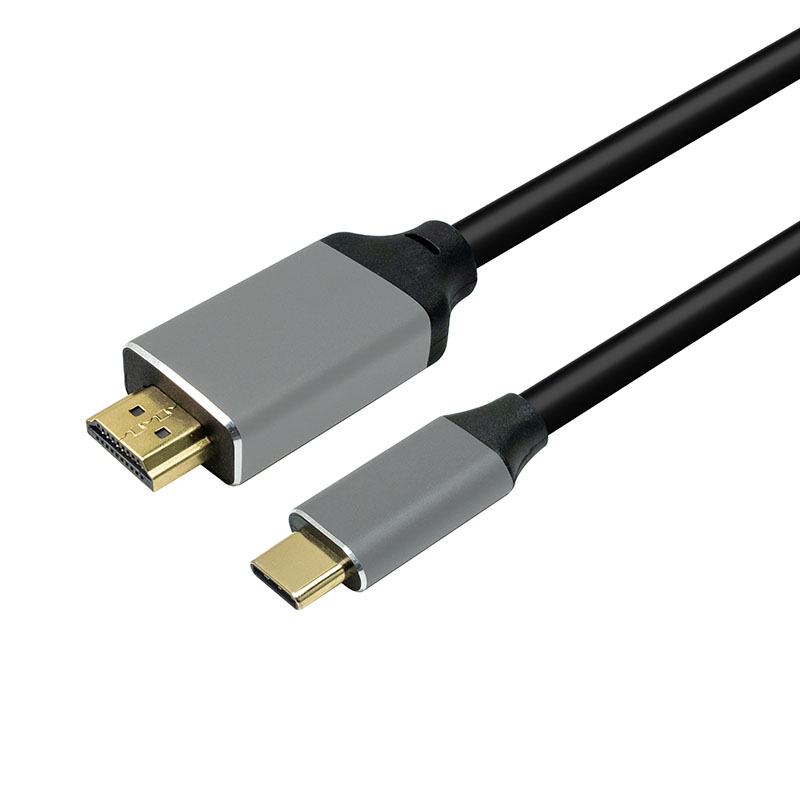

| USB-C computer to an HDMI display | USB-C to HDMI active optical; up to 30m | SCTH-1200 | USB-C must support compatible video output. Confirm resolution, refresh rate, DSC support and source-to-display direction. |
| USB-C computer to a DisplayPort monitor | USB-C to DisplayPort 1.4 converter | STZH-5600 | Unidirectional USB-C source to DP display. Confirm source capability, display mode and required length. |
| USB4 storage, docking or workstation connectivity | USB4 Type-C cable; listed up to 40Gbps and 240W | STQG-4000 | Actual data rate, video mode and PD power depend on the complete system. Explore USB4 solutions for optical or custom projects. |
Four questions that narrow down your USB-C cable
- What must pass through the cable? List USB data rate, display resolution and refresh rate, and charging power separately.
- What are the source and destination ports? Identify USB-C host/device roles or an HDMI/DisplayPort display. Check the equipment specifications for video and USB4 support.
- How long is the installed route? Include equipment access and service loops. Check combined data, video and power performance at that length.
- What installation constraints apply? State straight/right-angle connectors, locking requirements, available clearance and any moving-cable environment.
Common selection mistakes
- Choosing a charging cable when the project needs high-speed storage or a display.
- Assuming a USB-C data optical cable provides DP Alt Mode video.
- Assuming a video conversion cable also provides a USB data connection to the display.
- Applying the maximum power or distance from one model to every USB-C cable.
- Ignoring the source/display direction on active video cables.
Where to compare complete solutions
For data, display and power together, use the full-featured USB-C cable solutions page. For USB4 projects, use the USB4 solutions page. For USB-A, USB-B and Micro-B connections or longer USB data runs, use the USB cable extension and connector guide.
Request a USB-C recommendation
Share your equipment model numbers, connector types, cable length, required USB speed, display mode, PD power and quantity in the form below. Elike can review the configuration and recommend a model or sample for compatibility testing.
Browse the complete USB cable product range. Listed limits come from the linked product pages; available configurations and simultaneous performance should be confirmed for your system.
