90°USB 3.2 Gen1 AM to Micro B Active Optical Cable – Drag Chain Cable -(Backward Compatible USB 2.0&1.1)

90°USB 3.2 Gen1 AM to Micro B Active Optical Cable – Drag Chain Cable -(Backward Compatible USB 2.0&1.1)

Name: 90°USB 3.2 Gen1 AM to Micro B Active Optical Cable – Drag Chain Cable -(Backward Compatible USB 2.0&1.1)
Brand: Elike

Model Number : SRMB-3120

The SRMB-3120 is a 90° Fiber Optical USB 3.2 Gen 1 Cable Type-A to Micro-B designed for machine vision, robotics and industrial automation. It delivers up to 5Gbps over distances up to 15 meters and withstands 20 million drag-chain cycles. Its right-angle Micro-B connector saves installation space, while dual locking screws provide a secure connection in moving or high-vibration equipment. Support for USB 2.0/1.1 and 5V/900mA power delivery also makes it suitable for systems combining new and legacy USB devices.

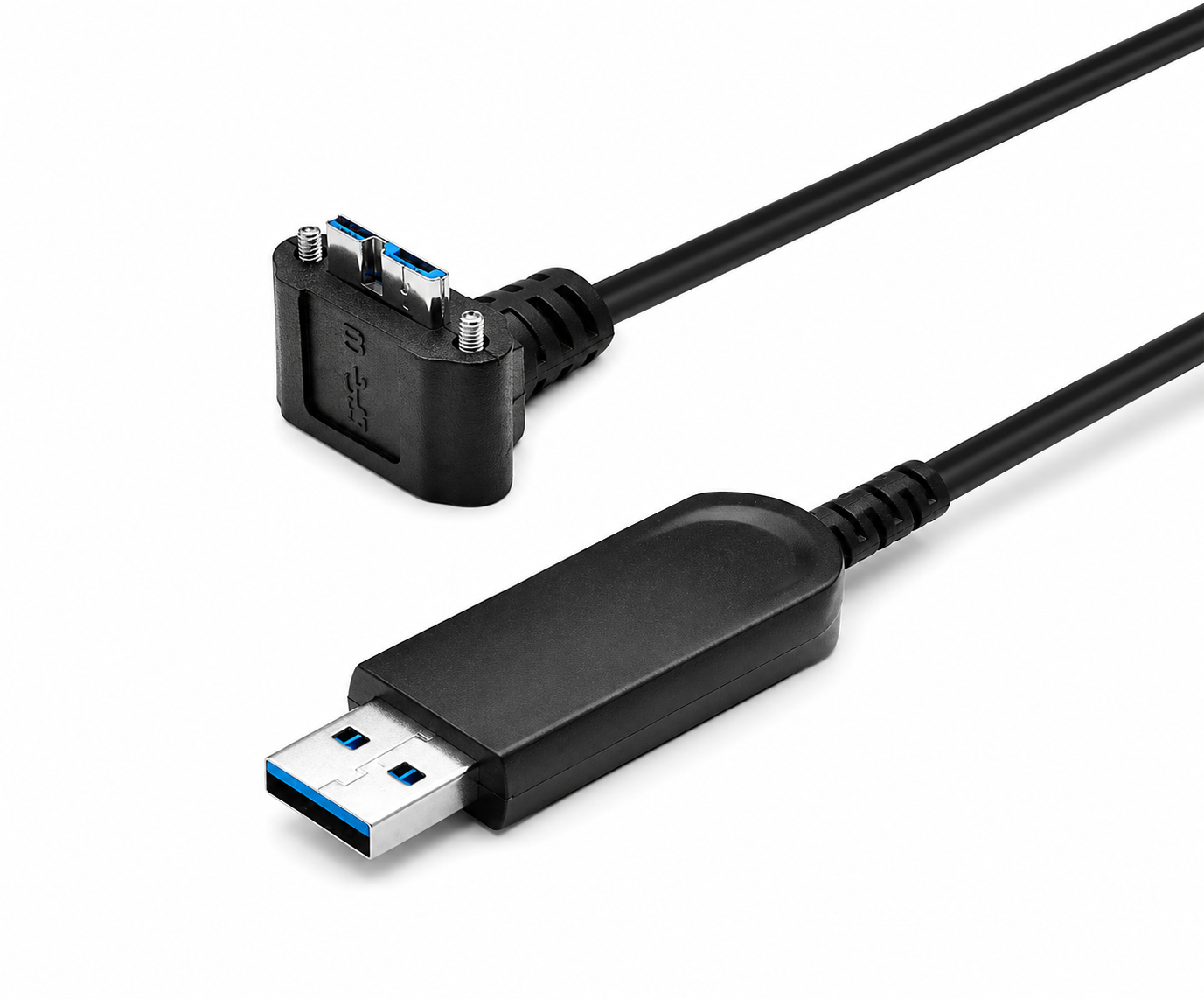

90° USB 3.2 Gen1 AM to Micro B Active Optical Cable - Drag Chain Cable - 15M(Backward Compatible USB 2.0&1.1)

key Features

USB 3.2 Gen 1 transmission up to 5Gbps
Up to 15m transmission with custom lengths available
Rated for 20 million drag-chain cycles
Space-saving 90° Micro-B connector
Dual screw lock for vibration-resistant connection
Backward compatible with USB 2.0 and USB 1.1
Supports up to 5V/900mA power delivery
Strong EMI resistance for industrial environments

Applications

Industrial Control
Digital Signage
Home Network Integration
Medical Device Connectivity
KVM Extension
Remote Desktop USB 3.0 and USB2.0 Connections
Security: web camera, access control
USB 3.0 & USB2.0 Device Sharing: print, scan, storage

Specifications

Parameter	Specification
Device Connector	90° USB 3.0 Micro-B plug with locking screws
Standard Lengths	5 / 8 / 10 / 12 / 15 m
Cable Diameter	5.8 mm
Recommended Supply Voltage	4.75–5.25 V
USB Bus Current	55 mA typical, 60.5 mA maximum
Operating Temperature	0°C to +50°C
Storage Temperature	−20°C to +70°C
Humidity	5%–85% RH (non-condensing)
