Fiber Optic USB C Cable – USB 3.2 Gen 2, 10Gbps, 60W PD, 90° Connector

Model Number : SVRC-3120

The Elike fiber optic USB C cable supports USB 3.2 Gen 2 data transfer at up to 10Gbps over distances of up to 10 meters. Designed for camera tethering, external storage and professional studio setups, it provides greater flexibility when positioning equipment away from a workstation.

Its 90° USB-C connector helps route the cable neatly in confined spaces and reduces protrusion around camera rigs. With support for up to 60W Power Delivery, it enables simultaneous data transfer and charging with compatible devices and power sources. Optical transmission helps resist electromagnetic interference, supporting reliable data connections in environments with nearby electronic equipment.

Request a Quote
USB 3.2 Gen 2 Type-C AOC
USB 3.2 Gen 2 Type-C AOC
professional application
USB 3.2 Gen 2 Type-C AOC
USB 3.2 Gen 2 Type-C AOC
USB 3.2 Gen 2 Type-C AOC
USB 3.2 Gen 2 Type-C AOC
professional application
USB 3.2 Gen 2 Type-C AOC
USB 3.2 Gen 2 Type-C AOC

key Features

  • Meet USB3.2 Gen2 Standard, bandwidth can reach10Gbpssuperspeed（Not Support the USB 4 Disk)
  • Uncompressed signal and the image quality is not distorted.
  • Hybrid copper and fiber cable,anti-interference,no-radiation,strong resistance to EMI
  • Support to 60W fast charging.
  • True Bi-Directional,No Direction
  • 850nm VCSEL and PIN photo detector
  • Plug and play,support hot plug

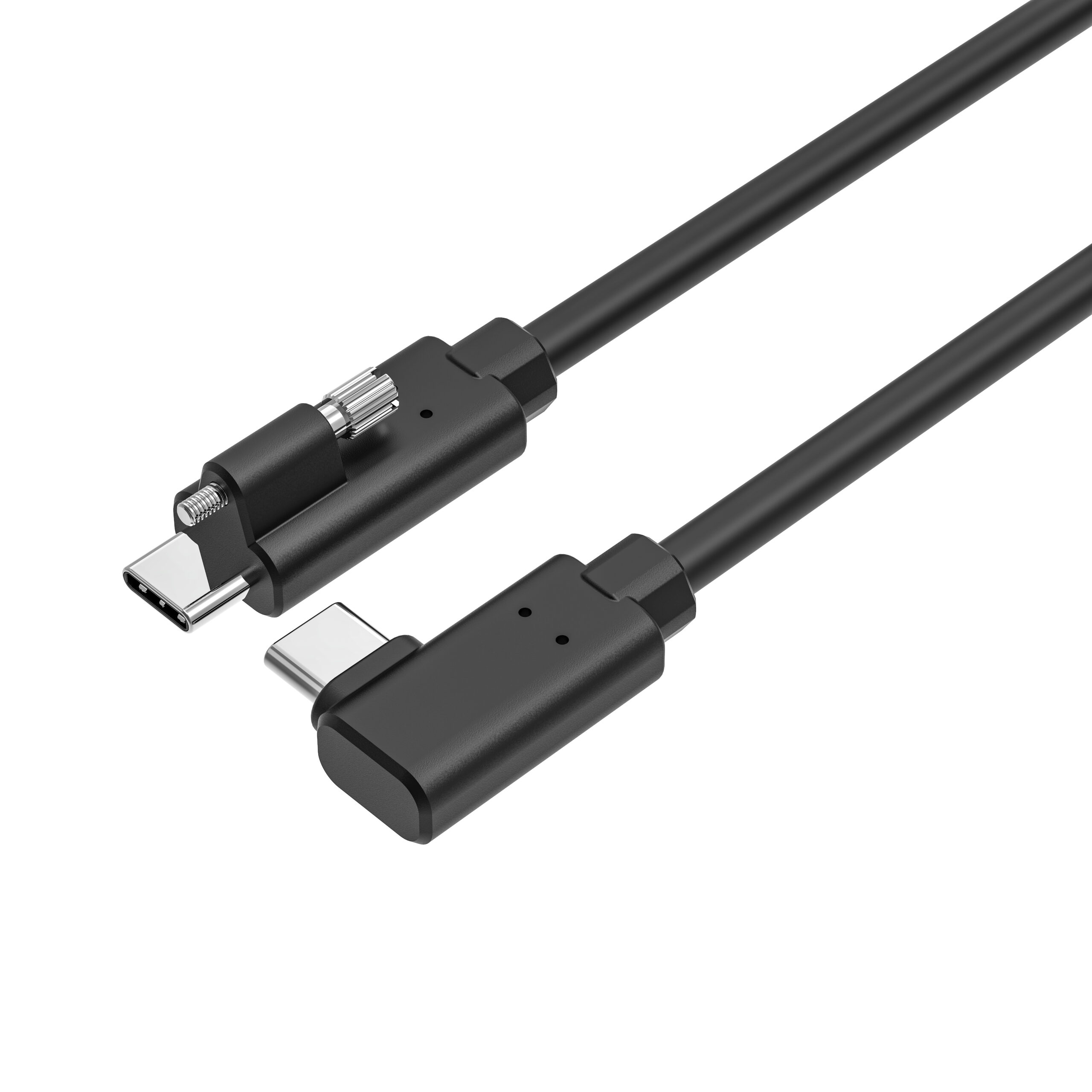

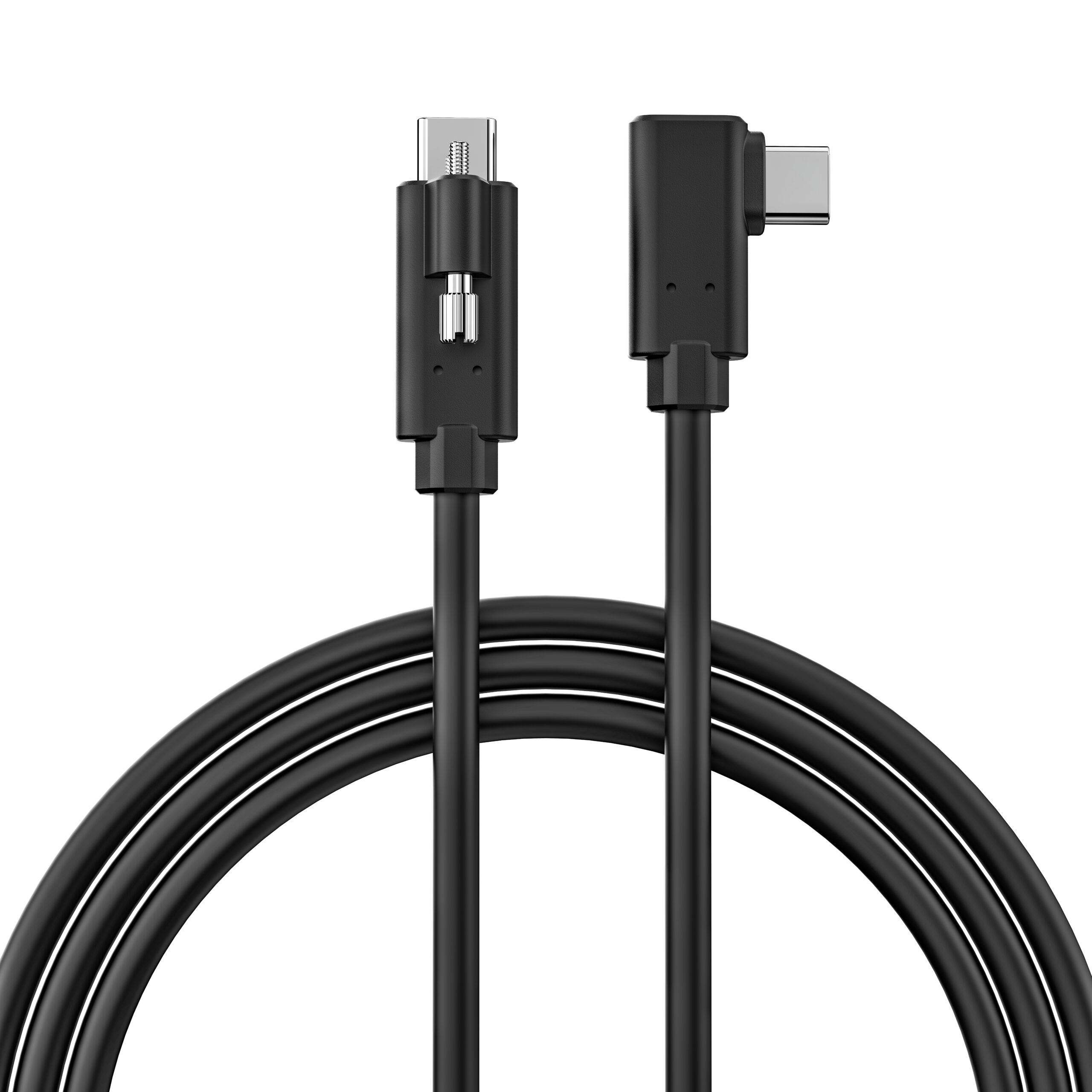

  • 90° Right-Angle Designor Screw Design
  • Cable OD less thanΦ5.0mm,lighter application
  • No external power supply required
  • Applicable length:0.2-10meters, support other distance customization.
  • Ultra-lightweight design for unrestricted VR/AR movement; driver-free direct connect bypasses hub limits for camera tethering and high-speed HDD sync.
  • Gold-plated pins and double-layer shielding ensure decade-long reliability.

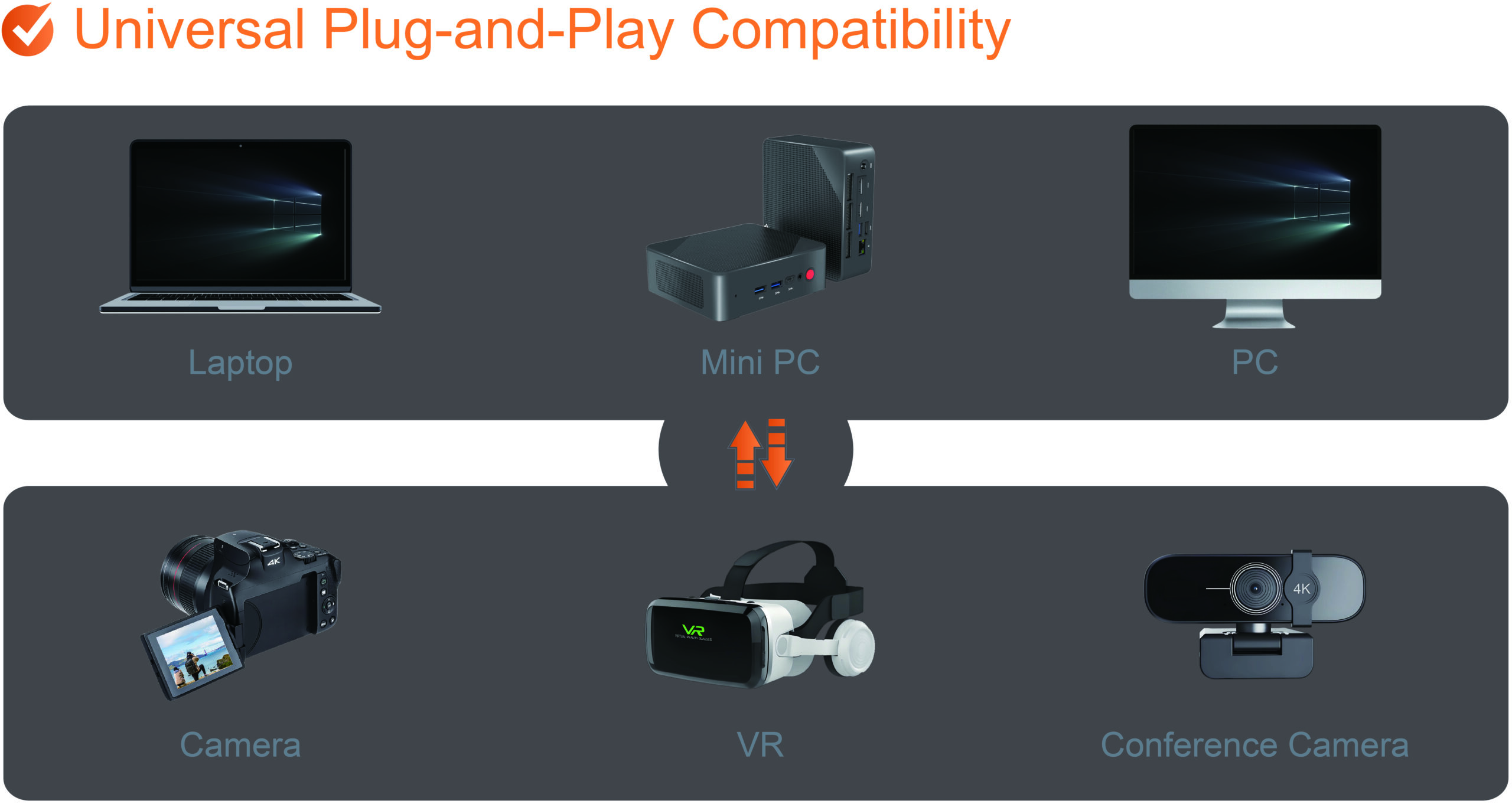

  • Compatible with Mac Book, AR VR, Storage Camera and USB 3.2 devices for Conference , and data centers.
  • Not Support Thunderbolt



Applications

  • Camera tethering: Connect compatible cameras to computers across a studio.
  • External storage: Transfer files to compatible USB drives and storage docks.
  • VR and AR: Connect compatible headsets that use USB data.
  • Video conferencing: Connect USB cameras and collaboration peripherals.
  • Machine vision: Link USB cameras to industrial computers.
  • Education and training: Extend USB peripheral connections in teaching spaces.

Specifications

Parameter Specification
Cable construction

2 OM3 optical fibers + 6 copper conductors, ground wire and braided shield
Jacket material

Standard PVC; TPE, LSZH or TPU options available
Minimum bend radius

 50 mm
Tensile strength

200 N
Crush resistance

 100 N
Operating temperature

0°C to +50°C
Storage temperature

−20°C to +70°C
Operating humidity

0–85% RH, non-condensing

FAQ

1.Since it is designed for camera tethering, how does it solve dropouts and instability during long shooting sessions?

This cable is built for high-load tethering:

Built-in German SiliconLine Chip: Intelligently regulates current and data flow to prevent overloads and signal interruption, ensuring zero-lag, real-time preview and shooting.

90° Right-Angle Design:Greatly reduces stress on the camera port, preventing accidental disconnection or damage caused by gravity, ideal for studio setups and outdoor shooting.

Fiber Optic Immunity:​Completely isolates electromagnetic interference (EMI/RFI), guaranteeing stable transmission of large RAW files.

2.Is 10Gbps speed really necessary for camera tethering?

 It is highly necessary. When shooting RAW format or 4K/8K video live streams​ with high-megapixel cameras like the Sony A7IV or Canon R5, data throughput is immense. 10Gbps (USB 3.2 Gen 2) ensures images load instantly on your computer screen for true “WYSIWYG” real-time editing, avoiding the lag caused by standard USB 3.0 cables.

3.What are the benefits of the 45°/90° right-angle design in actual use?

The L-shape is not just for aesthetics. It allows the cable to hang naturally along the camera body instead of sticking straight out. This reduces lever stress on the camera’s USB port (protecting your expensive gear) and allows the camera to sit closer to walls or desktop mounts, offering more flexibility in tight spaces.

4. Is this cable durable? It looks quite thin

Although the cable body uses flexible PVC material to reduce weight, it features an internal double-layer shielding structure. User feedback confirms it is “sturdy and well built,” capable of withstanding daily pulling and bending.

5.Does this cable support transmitting 4K & 8K video?

No, it does not. This product is a Data-Only cable​and does not support video signal transmission. If you need to transmit both data and 4K/8K video signals simultaneously, please choose our other model: the Full-Function USB-C AOC Cable.
