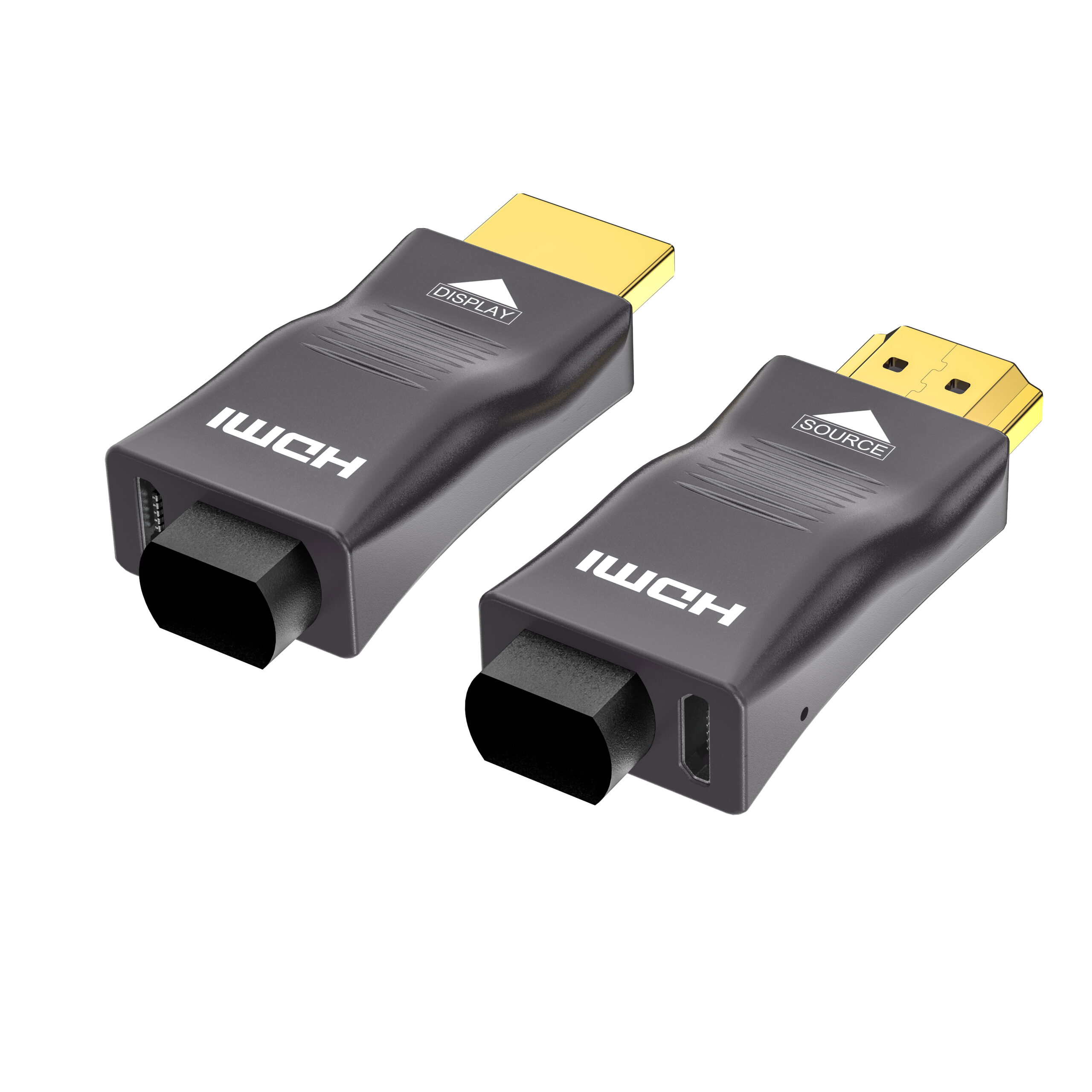

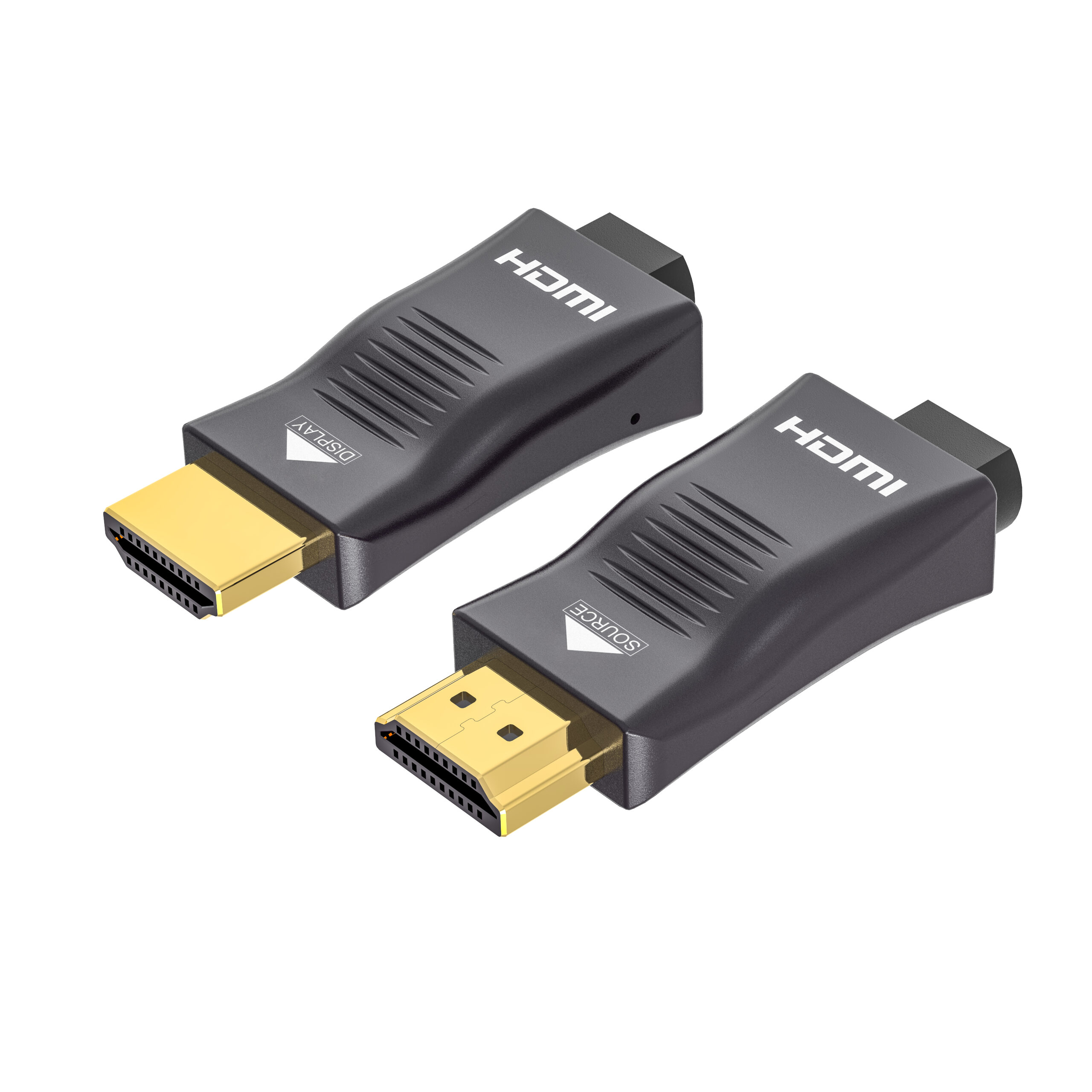

Detachable 8K HDMI MPO Fiber Optic Cable

Model Number : SHMP-9860

 8K Fiber Optical HDMI 2.1 Extender Kit redefines professional AV connectivity with its pure fiber optic architecture. This cutting-edge solution utilizes high-performance VCSEL lasers and photoelectric modules to deliver full HDMI 2.1 performance, supporting 48Gbps bandwidth, 8K@60Hz resolution, HDR, VRR, and eARC over extended distances without signal degradation.

Request a Quote
Detachable 8K HDMI MPO Fiber Optic Cable
Detachable 8K HDMI MPO Fiber Optic Cable
Detachable 8K HDMI MPO Fiber Optic Cable
Detachable 8K HDMI MPO Fiber Optic Cable
Detachable 8K HDMI MPO Fiber Optic Cable
Detachable 8K HDMI MPO Fiber Optic Cable
Detachable 8K HDMI MPO Fiber Optic Cable
Detachable 8K HDMI MPO Fiber Optic Cable
Detachable 8K HDMI MPO Fiber Optic Cable
Detachable 8K HDMI MPO Fiber Optic Cable
Detachable 8K HDMI MPO Fiber Optic Cable
Detachable 8K HDMI MPO Fiber Optic Cable

key Features

  • Fully compliant with HDMI 2.1; backward compatible with HDMI 2.0/1.4.
  • Up to 48 Gbps bandwidth; supports 8K@60Hz & 4K@120Hz stably.
  • Supports HDR, HDR10+, and Dolby Vision for vivid, true-to-life visuals.
  • Transmits uncompressed Dolby Atmos, DTS:X, TRUE-HD; up to 32 channels lossless.
  • 7-core OM3 multimode fiber enables stable EDID/HDCP bidirectional communication.
  • Hot-swappable MPO connectors simplify installation and future maintenance.
  • Supports VRR, ALLM, QFT, QMS—low latency, no tearing or lag.
  • Compatible with ARC/eARC; supports HDCP 1.4/2.2/2.3 across AV devices.
  • EDID auto-negotiation; plug-and-play, driver-free operation.
  • Pure fiber design; immune to EMI/RFI; zero attenuation over long distance.
  • Ultra-slim, lightweight LSZH jacket; ideal for tight-space cabling.
  • Low-power, high-stability design; supports OEM/ODM customization.
  • For reliable CEC, connect both ends to a stable 5V USB power source
  • Rugged Armored Protection

Applications

  • 8K Home Theater System
  • E-sports Displays and Gaming Equipment
  • Commercial Displays and Digital Signage
  • Security Monitoring Center
  • Radio and Television Broadcasting Studios
  • Medical Imaging Display System
  • Data Center Room Display
  • Stage performances and events held at the venue
  • Industrial Control and Visualization

Specifications

ParameterSpecification

Interface type

2 x HDMI Male Golden Plated

Maximum bandwidth

48Gbps: 12 Gbps/ Channel x 4Channel (max)

Maximum Resolution

7680 × 4320 @ 60Hz (8K UHD) 1080p/1440p @ 240Hz, 4K @ 120Hz, 5K @ 60Hz

Color Format

RGB，YCbCr 4:4:4 / 4:2:2 / 4:2:0

Color Depth

8-bit, 10-bit, 12-bit

HDR support

Dynamic HDR, HDR10, HDR10+

HDCP

HDCP 2.3

Audio Support

DSC 1.2a eARC ,Dolby,Atoms 7.1

FAQ Question 1

Q1: Are there any direction requirements for product connections? What problems can occur with incorrect connections?

A1: The HDMI adapter has directional requirements – the Source signal port must be connected to the Display output port; reversed connections will prevent proper signal transmission. Always verify the port orientation before use.

FAQ Question 2

Q2: What are the precautions to observe when bending or pulling wire materials?

A2: Do not forcibly pull, twist, or crush the cable; avoid excessive bending. During use and installation, maintain a bending radius of at least 30 mm to prevent internal fiber fracture and signal transmission abnormalities.

FAQ Question 3

Q3: How to resolve abnormal power supply issues with the device?

A3: For normal operation, ensure stable USB 5V power supply. If issues such as device recognition failure, screen flickering, or no signal occur due to insufficient power, connect the device to a standard 5V external power source.For long-distance transmission scenarios, simultaneous power supply at both ends is recommended.
